FEATURES :
- Provides facility for collecting and piping away liquids
- Threaded bowls permit easy disassembly without removal form the airline
- Vent Valve enables pressure to be exhausted before routine maintenance is carried out
- Can be installed at a low point in the compressed air pipeline distribution network, where water is likely to accumulate

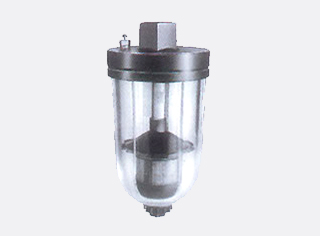

MODEL S17-016
| Parameters | Specifications | |||
|---|---|---|---|---|
| Pipe Threads | G 1/2 Parallel (F) | - Standard | ||
| BSPTr. / NPT | - Optional | |||
Body Material |
Al. Alloy die-cast |
|||
| Bowl Material | Transparent Polycarbonate - Standard | |||
| Al. Alloy Metal with sight glass - Optional | ||||
Maximum Inlet Pressure |
with PC Bowl : 150 psig (10.5 kg/cm²) | |||
with Metal Bowl : 250 psig (17.5 kg/cm²) |
||||
Maximum Operating Temperature (ambient) |
with PC Bowl : 125º F (50ºC) | |||
with Metal Bowl : 175º F (80ºC) |
||||
| Drain | Automatic - Standard | |||
| Manual - Optional | ||||
